BMW F30 Widebody Scan-to-Carbon Development
RaceEngineeringSA public project media documents scan capture and digital surface development for an F30 widebody programme intended for carbon-fibre production.
Project narrative is based on supplied RESA media. Commercial details and outcomes require confirmation before publication.
INITIAL CONDITION

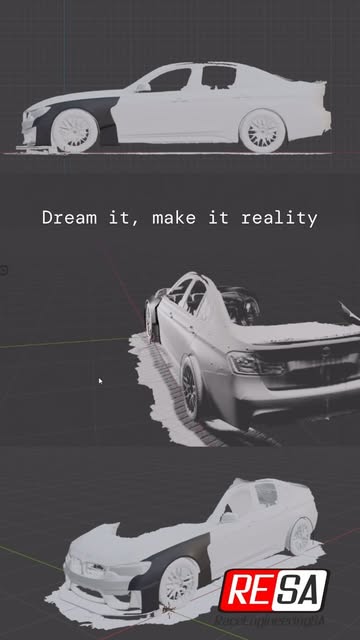

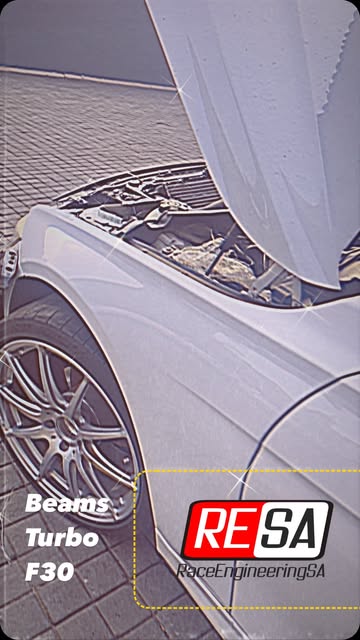

A BMW F30 vehicle surface was prepared for digital capture; the exact starting specification requires confirmation.
CUSTOMER OBJECTIVE
Develop scan-derived surfaces for a widebody carbon-fibre kit; the final customer brief and vehicle variant require confirmation.
Engineering scope

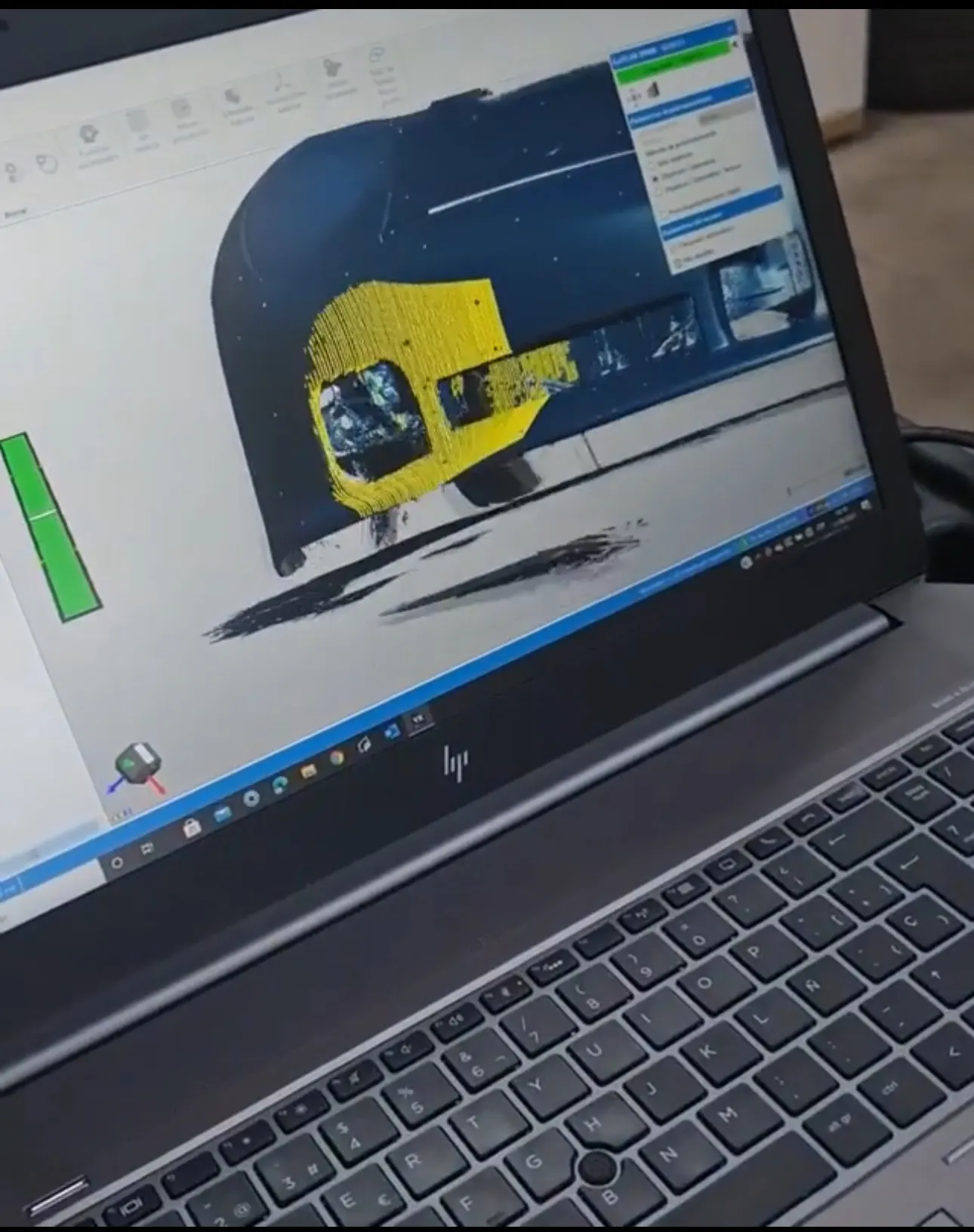

- 3D scanning
- Point-cloud processing
- Widebody surface development

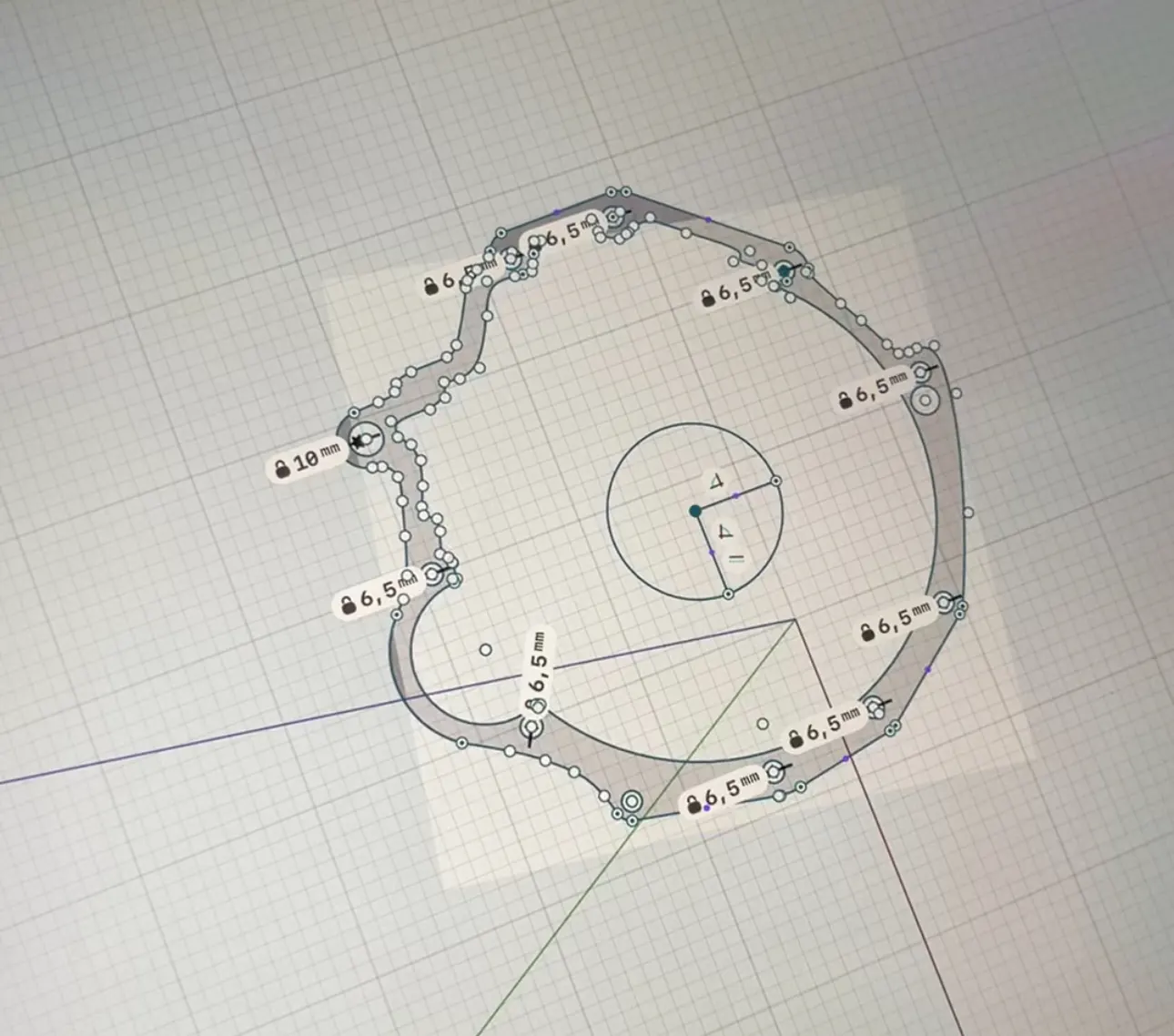

- CAD preparation
Components developed
- F30 widebody digital surfaces
- Carbon-fibre kit — exact component list requires confirmation
Manufacturing work

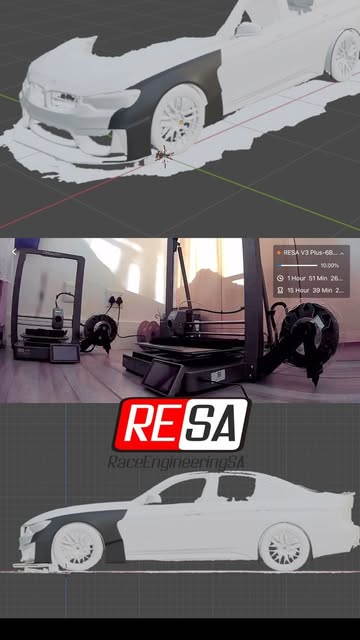

- Scanning and digital surfacing documented
- Tooling, layup and fitment details require confirmation
FINAL RESULT

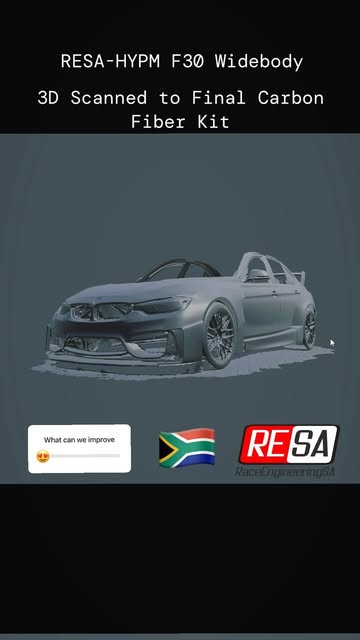

RESA public media identifies the programme as 3D scan to final carbon-fibre kit; the final component set and validation results require confirmation.
